High Performance Tire Tube Valve Making Machine

Brand Name : HHS

Model Number : XLB50-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 4000-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 3000 kg

advantage : high production

Contact Now

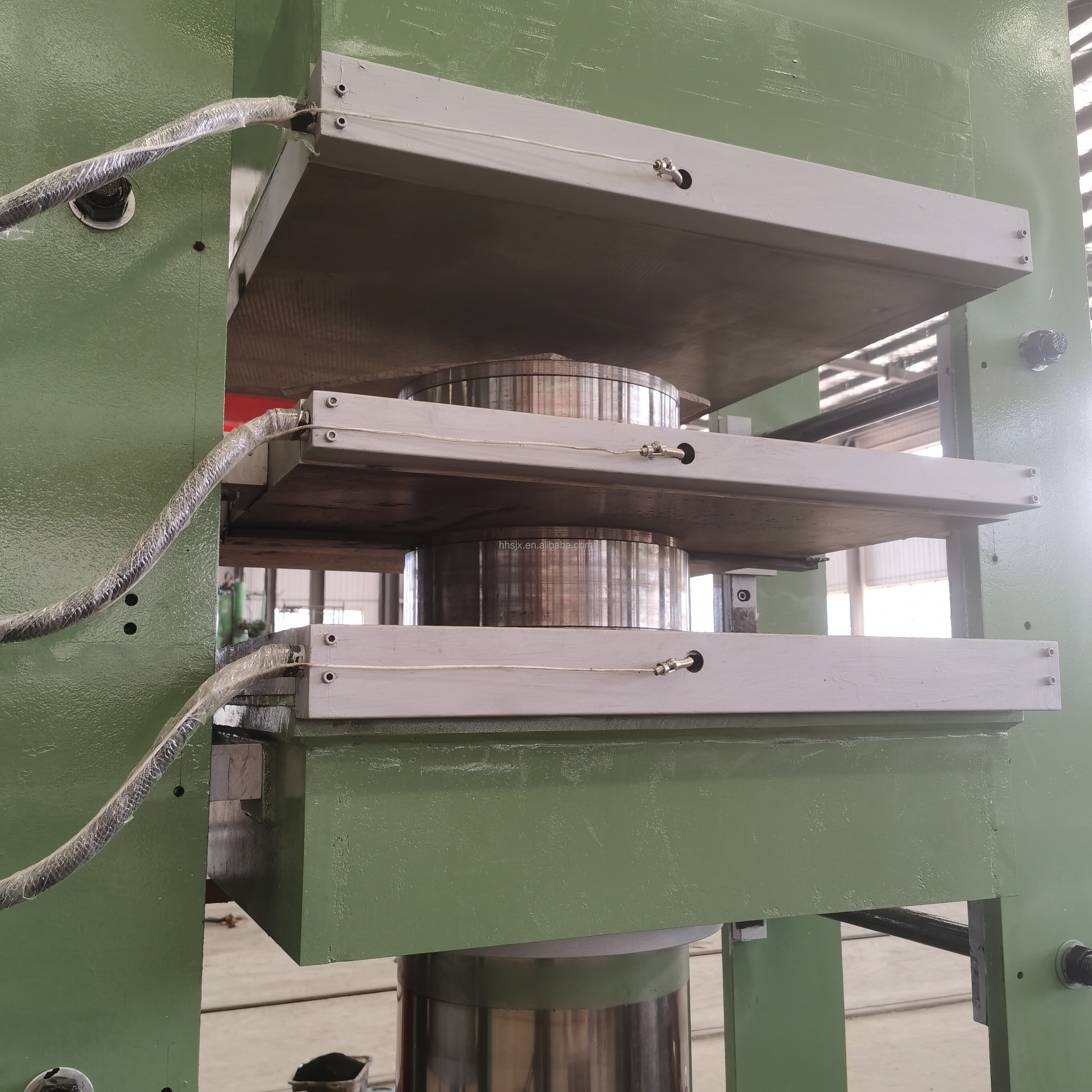

Introduction of rubber vulcanizing press

XLB series the plate vulcanizing press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The equipment is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency.

Parameter of Column rubber vulcanizing press

Model	Total Pressure	Daylight	Working layer	Piston Stroke	Main Motor Power	Overall Diameter
XLB-3503502	0.25	125	2	250	2.2	12005801200
XLB-4004002	0.50	125	2	250	2.2	14005001400
XLB-6006002	1.00	125	2	250	2.2	18808201680
XLB-7508504	1.60	125	4	500	3	17309302460
XLB-9009002	2.5	200	2	400	4	23459601385

Tyre inner tubes making machine Features

1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX type polyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect.
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc
3.The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
8.Mainly hdralic spare parts are imported from Taiwan
